VT007 vs VT009 — Improved Usability
VT007 and VT009 are both linear vibration plates that use an eccentric-wheel and spring mechanism to generate controlled mechanical vibration.
Background & Design Concepts
VT007 was launched in 2021 as an refined design of our legacy model VT003F.

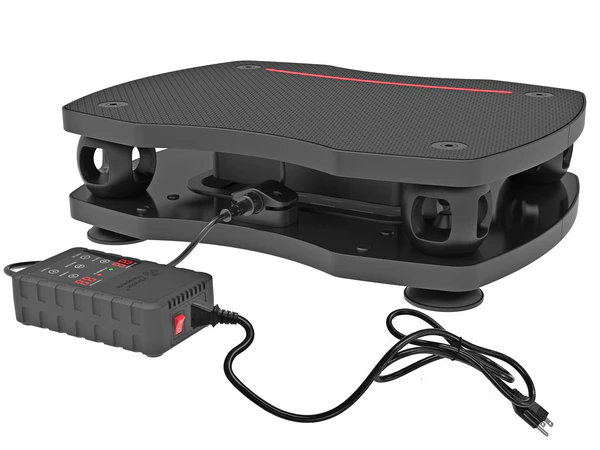

In November, 2025, we introduced VT009 into the market as a pro version of VT007. Its vibration drive employs four pairs of eccentric wheels, compared with three pairs in the VT007. The added eccentric-wheel pair increases the total centrifugal force by approximately 33%, resulting in a 15–20% gain in vibration amplitude. This gives VT009 a wider amplitude range, accomodating more versatile applications.
To support the increased vibration intensity, VT009 is designed in a reinforced steel platform construction supported with more robust spring components, in order to ensure the intensive vibration evenly distributed across the platform and maintain long-term durability.
With a machine weight of 46 lb and its rigid steel construction, VT009 is heavy and strong enough to attach a handlebar stablely and use-safely.
Both VT007 and VT009 are consumer grade vibration plates, while VT009 accommodates commercial use better.
Specs Comparisons
| Model |  VT009 |
VT007 |
| Movement Pattern | Linear Vibration | Linear Vibration |
| Slow Motion Animation |  |
|
| Movement Drive | 4 Pairs of Eccentric Wheels | 3 Pairs of Eccentric Wheels |
| Platform Materials | 6mm Steel plate reinforced by welded steel edge and structural braces | 20mm high density fibre boards reinforced by mold-injected ABS edge |
| Spring Support | Upgraded | Original |
| Amplitude@Hi | 1.7 - 3.1 mm | 1.5 - 2.6 mm |
| Amplitude@Lo | 0.8- 1.4 mm | 0.7- 1.2 mm |
| Frequency | 10 - 40Hz | 10 - 40Hz |
| Nominal G-force | 0.2 - 3.7 | 0.2 - 3.3 |
| Machine Weight | 46 lb | 26 lb |
| Package Weight | 53 lb | 31 lb |
| Machine Dimensions | 22"x16"x5.7" | 22"x16"x5.7" |
| Handlebar | Optional Attachment | Not Applicable |
| Recommendated Max User Weight | 300 lb | 250 lb |
Usability Comparisons
Built on years of consistent manufacturing experience with VT007, VT009 integrates several key engineering upgrades:
- Additional set of eccentric wheels to expand amplitude range.
- Reinforced all-steel platform and upgraded rubber spring system to support higher dynamic loads, and improve uniformity of vibration across the platform.
- Increased machine weight and structural rigidity to safely accommodate a handlebar attachment.
- Rollaway Wheels - the handlebar incorporates a pair of rollaway wheels. Once the handlebar is attached, the two wheels allow the user to tilt and roll the heavy machine for repositioning.
Despite these upgrades, VT009 retains the fundamental movement pattern and frequency range of VT007 — preserving the same therapeutic logic and vibration characteristics that have proven effective across thousands of users.
In essence, VT007 features light weight, convenience and reliability, while VT009 extends the platform towards higher preformance, greater stability, and a broader range of users. Both models share the same engineering foundation and are built-to-last, with each bing better suited to different use cases.
With the package weight of 53lb and machine weight 43lb, VT009 requires two persons to lift and set up.
